Special Yokes & Jaws Warranty

All Special Manufactured Yokes and Alligator Jaws have a 30 Day Warranty under normal use.

Warranty will be null and void if customer requests any unusual change from manufacture of special yokes and jaws.

No warranty if Atlantic Air Tool Special Yoke or Alligator Jaw assembled into a non-Atlantic Air Tool.



1500's

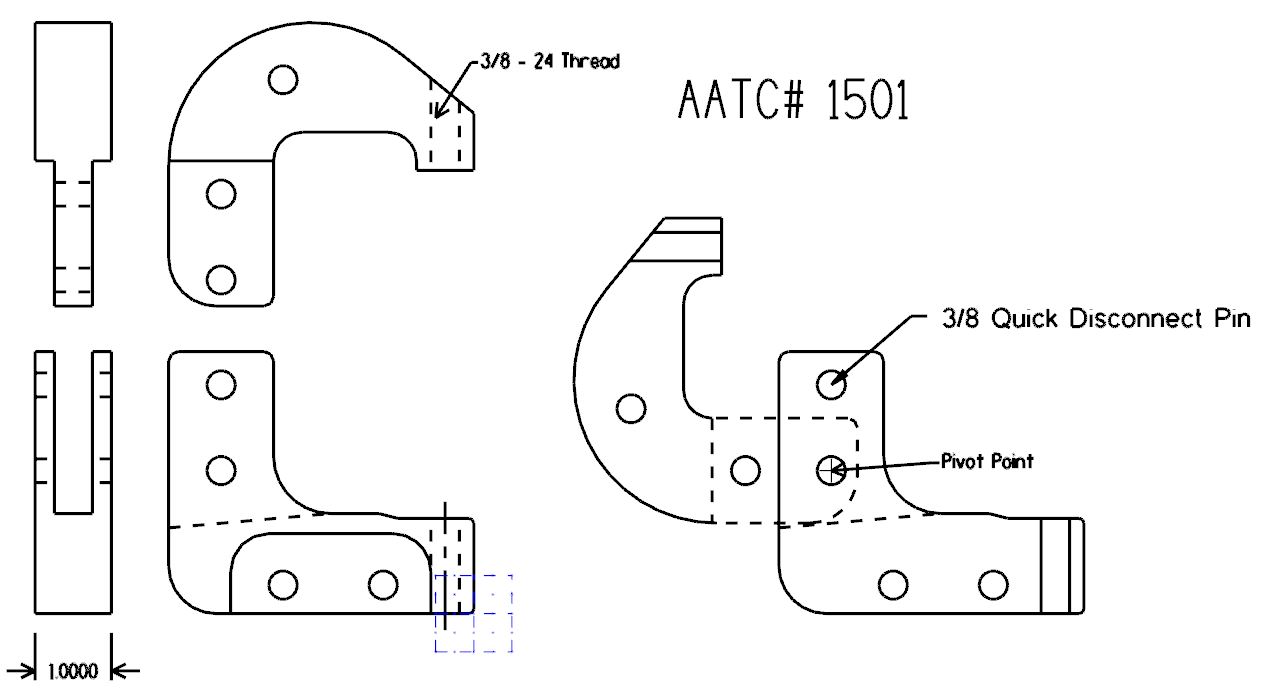

1501



Rated For 30C,60C
Reach 2 1/4"
Gap 2 1/2"



1502



Rated For 30C, 60C
Reach 2 1/2"
Gap 3 3/4"



1508



Rated For 30C, 60C
Reach 2"
Gap 2"



1509



Rated For 30C, 60C
Reach 1 1/2"
Gap 1 1/2"



1510



Rated For 30C ONLY
Reach 1 1/4"
Gap 1 3/4"



1511



Rated For 30C, 60C, 90C
Reach 3 1/2"
Gap 1 3/8"



1514



Rated For 30C
Reach 1 1/2"
Gap 7/8"



1518



Rated For 444C
Reach 3"
Gap 1 1/2"



1519



Rated For 30C
Reach 1 11/16"
Gap 1 3/8"



1522



Rated For 30C, 60C, 90C
Reach 2"
Gap 1 3/8"

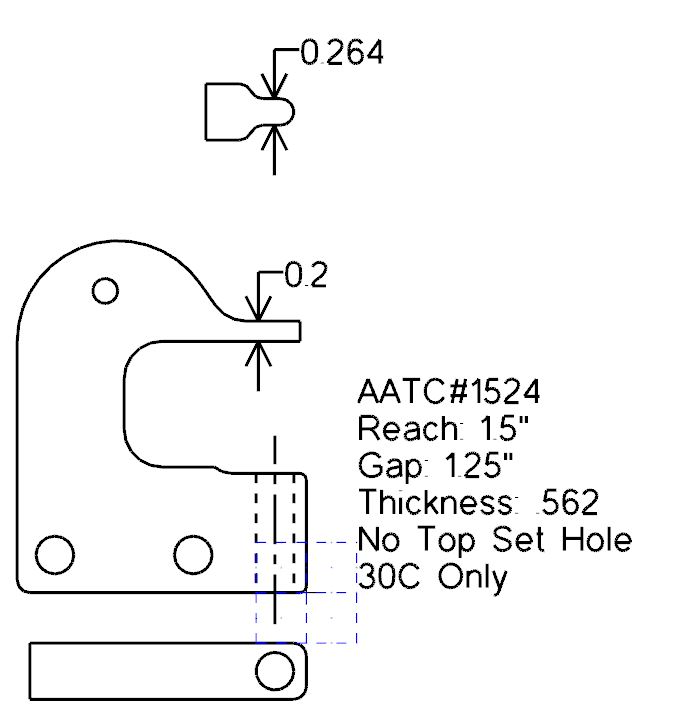

1524



Rated For 30C
Reach 1 1/2"
Gap 1.225"
No Top Set Hole



1525



Rated For CP351 w/#1
Reach 6 3/8"
Gap 1 1/16"



1531



Rated For 30C, 60C
Reach 3 5/8"
Gap 2 1/2"



1533



Rated For 30C, 60C
Reach 3 5/8"
Gap 2"



1539



Rated For 30C, 60C
Reach 2"
Gap 1 3/8"



1543



Rated For 30C, 60C
Reach 2.50"
Gap 1.94"



1544



Fits Tool(s) 30C, 60C, 90C
Reach 3 1/2"
Gap 1 3/4"

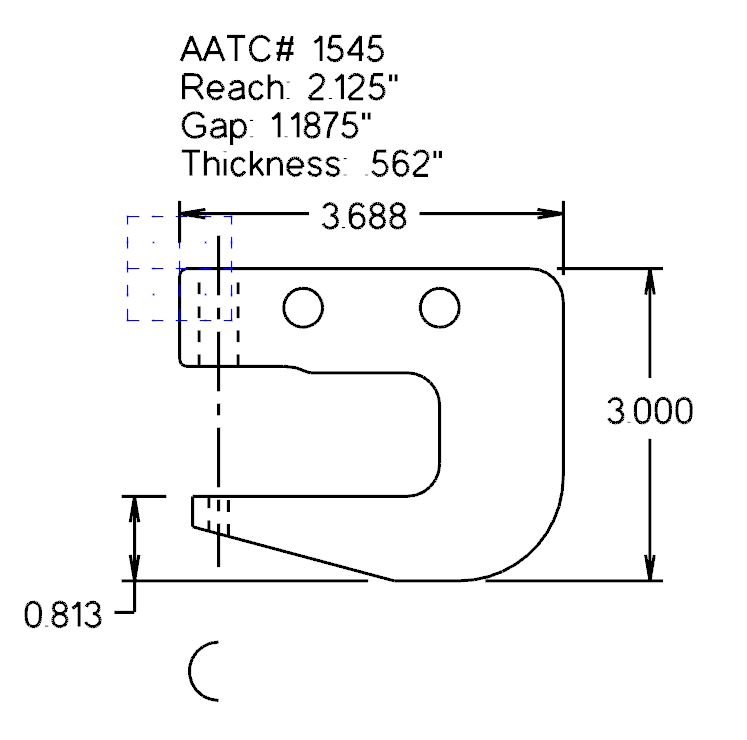

1545



Fits Tool(s) 30C
Reach 2 1/8"
Gap 1 3/16"



1547



Rated For 30C, 60C
Reach 4"
Gap 1 1/4"



1548



Rated For 30C, 60C, 90C
Reach 9"
Gap 6"



1550



Rated For 30C
Reach 1 3/4"
Gap 1 3/4"

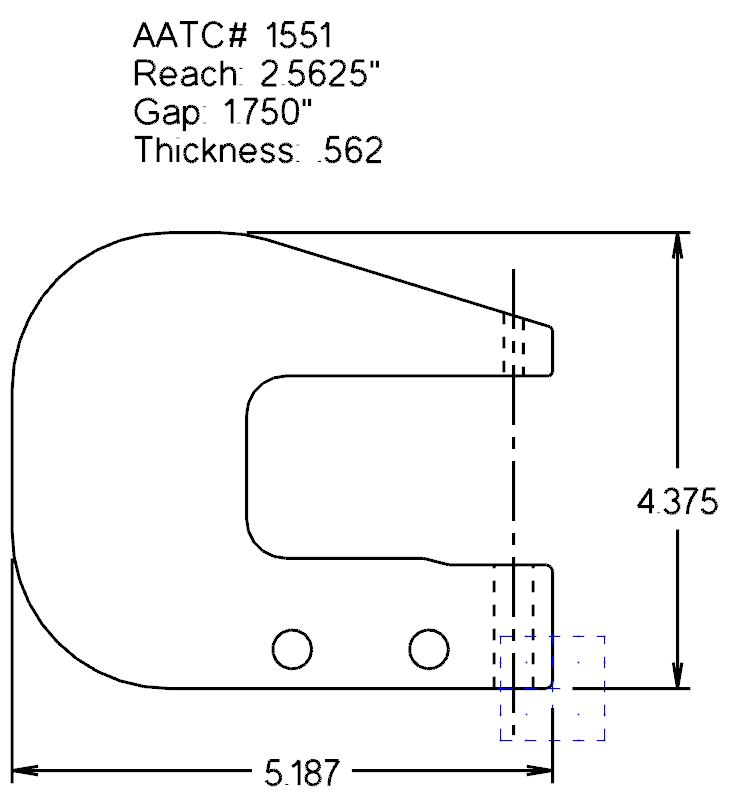

1551



Rated For 30C, 60C
Reach 2 9/16"
Gap 1 3/4"



1555



Rated For 30C, 60C, 90C
Reach 3"
Gap 2.250"
Gap Behind the Nose



1557



Rated For 30C, 60C
Reach 3"
Gap 1 1/2"



1558



Rated For 30C, 60C
Reach 3 1/2"
Gap 1 1/2"



1561



Rated For 90C
Reach 2"
Gap 2"



1570



Rated For 30C, 60C
Reach 2 1/2"
Gap 1 1/4"



1571



Rated For 30C, 60C
Reach 3"
Gap 1 1/4"



1574



Rated For 30C, 60C, 90C
Reach 3 1/2"
Gap 1 3/4"



1577



Rated For 30C, 60C, 90C
Reach 4"
Gap 2.250"
Gap Behind the Nose



1579



Rated For 30C, 60C, 90C
Reach 7.250"
Gap 2.50"



1583



Rated For 30C
Reach 3 9/16"
Gap 1 1/4"



1585



Rated For 30C, 60C
Reach 3"
Gap 1 1/2"



1591



Rated For 30C, 60C, 90C
Reach 3 1/4"
Gap 4 1/4"



1593



Rated For 351C
Reach 4 3/8"
Gap 1 15/16"
Gap Behind the Nose 3"
