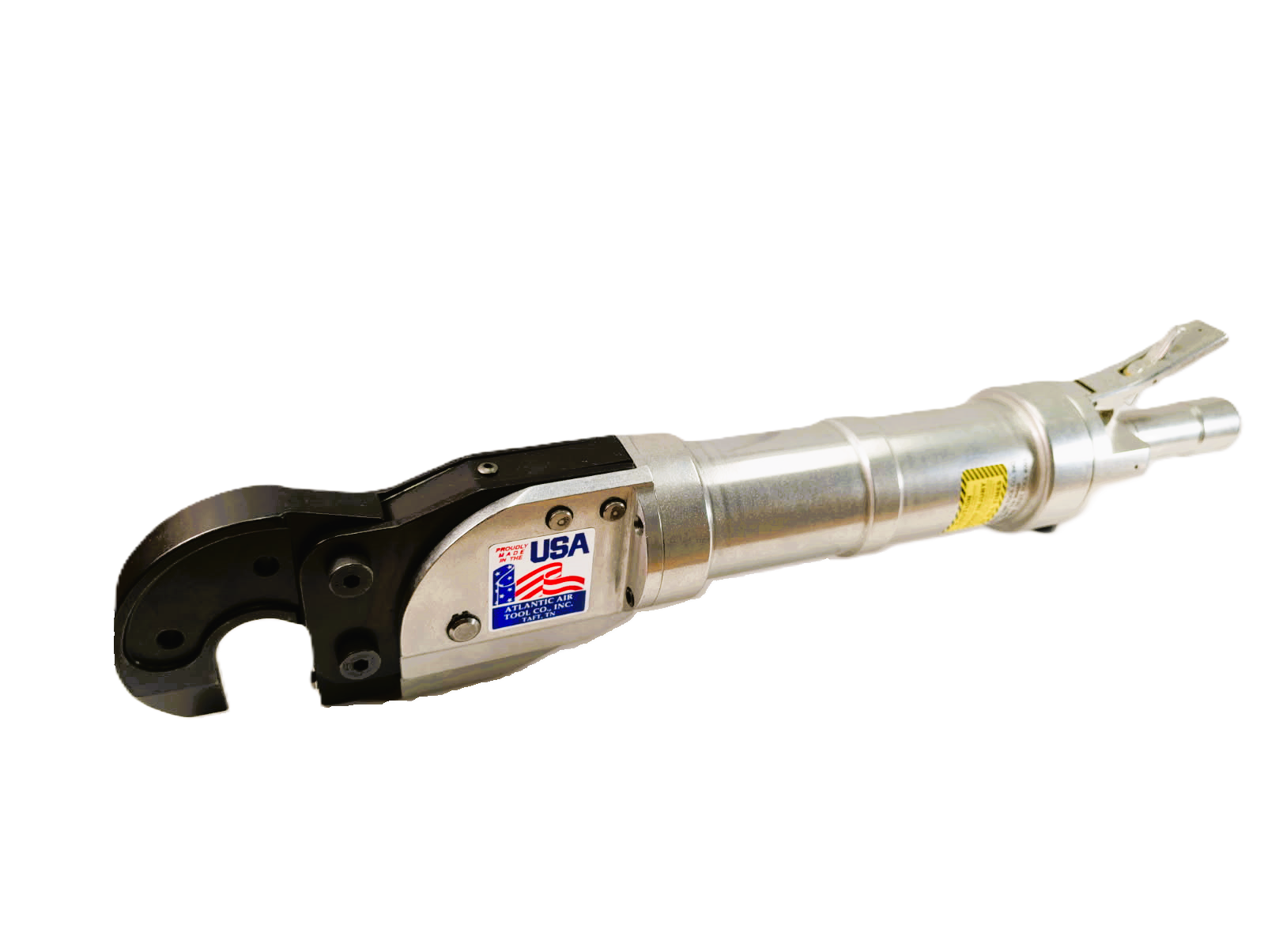

444C Series
444 C
|
MODEL
|
RIVET
CAPACITY DIAMETER |
STANDARD
YOKE DIMENSIONS |
MAX FORCE with 90 PSI (6.21 BAR) AIR PRESSURE PSI (KN) |
OOVERALL LENGTH |
MAX
RAM TRAVEL |
STROKE AT MAX POWER |
WEIGHT LBS (kgs) |
|||
|
ALUM
|
STEEL
|
REACH
|
GAP
|
Without Yoke |
With Standard Yoke
|
|||||
| 444CFH21 | 5/16 (7.9) |
1/4 (6.35) |
2 1/8 (53.97) |
1 1/2 (38.1) |
12,000 (53.4) |
19 23/32 (500.8) |
23 3/16 (588.96) |
5/8 (19.05) |
3/32 (2.38) |
15.5 (7.05) |
| 444CSH21 | 5/16 (7.9) |
1/4 (6.35) |
2 1/8 (53.97) |
1 1/2 (38.1) |
12,000 (53.4) |
19 23/32 (500.8) |
23 3/16 (588.96) |
5/8 (19.05) |
3/32 (2.38) |
16.5 (7.50) |
FH - Fixed Head SH - Swivel Head |
||||||||||
*All pressures are load cell tested not calculated.
